This control allows you to render a bar of filters that looks exactly the same as in modern lists.

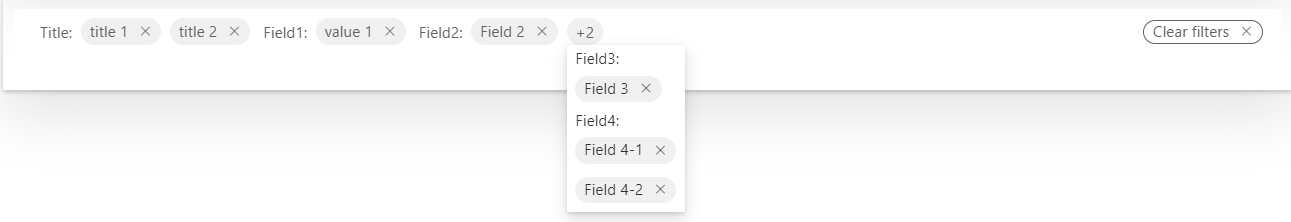

Here is an example of the control in action:

FilterBar control

How to use this control in your solutions

  • Check that you installed the @pnp/spfx-controls-react dependency. Check out the getting started page for more information about installing the dependency.
  • In your component file, import the FilterBar control as follows:
import { FilterBar } from "@pnp/spfx-controls-react/lib/FilterBar";
  • Use the FilterBar control in your code as follows:
// Initial state
this.state = {
      filters: [{
            label: "Title",
            value: "title 1"
        },
        {
            label: "Field1",
            value: "value 1"
        },
        {
            label: "Title",
            value: "title 2"
        }
    ]
}
...
...
// Events
private onClearFilters = () => {
    console.log("Cleared all filters");
    this.setState({ filters: []});
}

private onRemoveFilter = (label: string, value: string) => {
    console.log(`Cleared ${label} ${value}`);
    const itm = this.state.filters.find(i => i.label === label && i.value === value);
    if (itm) {
        const index = this.state.filters.indexOf(itm);
        this.state.filters.splice(index, 1)

        this.setState({
          filters: [...this.state.filters]
        });
    }
}

...
...

//Render the filter bar
<FilterBar
    items={this.state.items}
    inlineItemCount={3}
    onClearFilters={this.onClearFilters}
    onRemoveFilter={this.onRemoveFilter}>
</FilterBar>

Implementation

The FilterBar control can be configured with the following properties:

Property Type Required Description Default
items IFilterBarItem[] yes Filters to be displayed. Multiple filters with the same label are grouped together
inlineItemCount number no Number of filters, after which filters start showing as overflow 5
onClearFilters () => void no Callback function called after the next item button is clicked. Not used when triggerPageEvent is specified.
onRemoveFilter (label: string, value: string) => void no Callback function called after clicking a singular filter pill

IFilterBarItem

Property Type Required Description Default
label string yes Filter label
value string yes Filter value
