WorldMapControl Documentation

A React component for displaying interactive world maps with markers, search functionality, and customizable styling using MapLibre GL JS.

This use Mapitiler API for map tiles and supports custom styles. By default, it uses a free demo map without requiring an API key, but if you want to use MapTiler or a custom style, you can provide an API key and style URL. To Get the API key, you can register on MapTiler and create a Account to get your API key.

Table of Contents

• Installation
• Basic Usage
• Properties
• Data Structure
• Map Configuration
• Search Feature
• Marker Customization
• Examples

Installation

npm install @pnp/spfx-controls-react

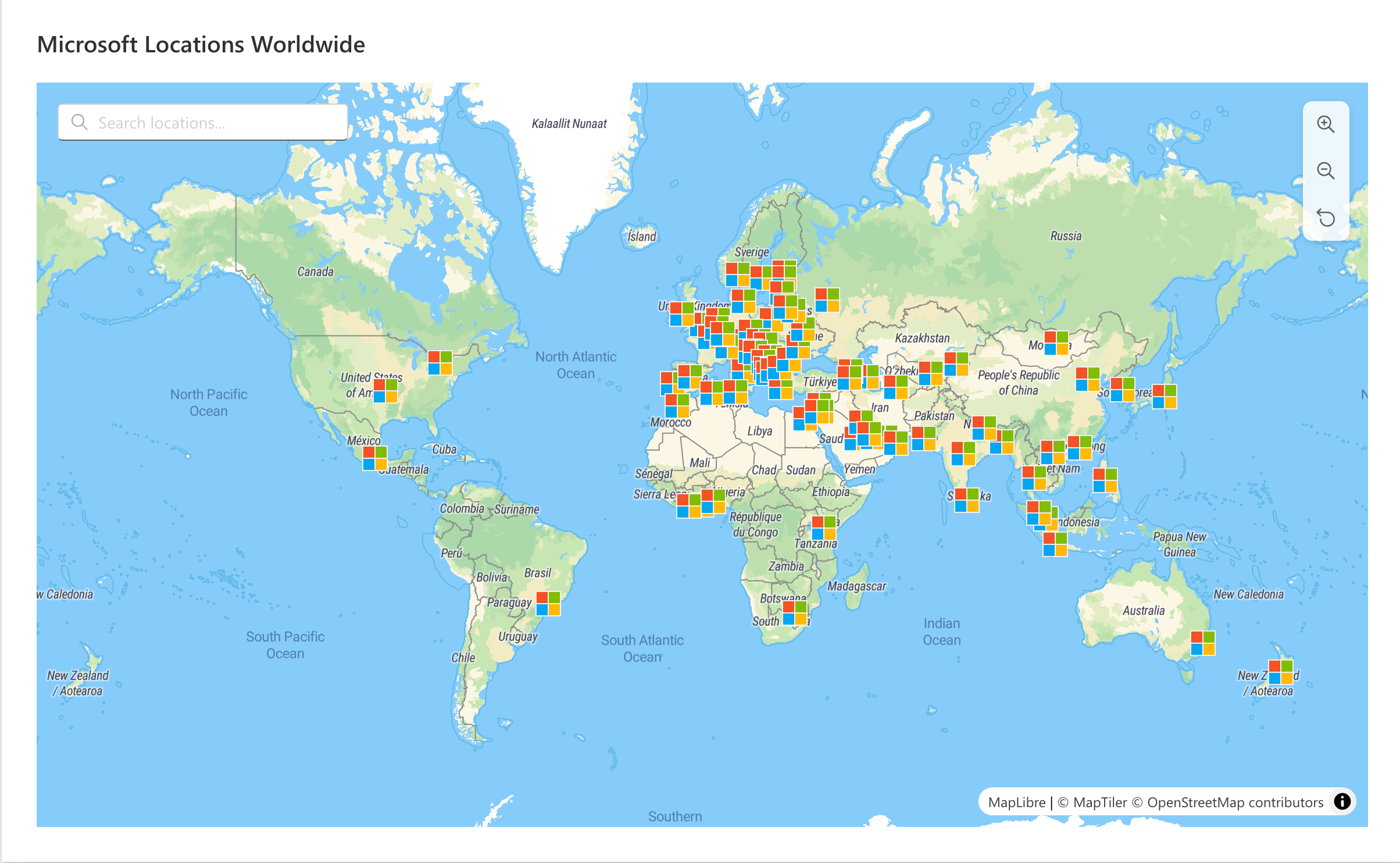

Example of WorldMapControl

Basic Usage

import React from 'react';
import { MaplibreWorldMap } from '@pnp/spfx-controls-react/lib/WorldMapControl';
import { IData } from '@pnp/spfx-controls-react/lib/worldMap';

const MyMapComponent: React.FC = () => {
  const locations: IData[] = [
    {
      id: '1',
      name: 'New York',
      imageUrl: 'https://example.com/nyc.jpg',
      link: 'https://example.com/nyc',
      coordinates: [-74.006, 40.7128]
    },
    {
      id: '2',
      name: 'London',
      imageUrl: 'https://example.com/london.jpg',
      link: 'https://example.com/london',
      coordinates: [-0.1276, 51.5074]
    }
  ];

  const handleMarkerClick = (location: IData) => {
    console.log('Clicked:', location.name);
    // Navigate to location.link or show details
  };

  return (
    <MaplibreWorldMap
      data={locations}
      onClick={handleMarkerClick}
      title="My World Map"
    />
  );
};

Properties

Core Properties

Property	Type	Required	Default	Description
data	IData[]	✅	-	Array of location data to display
onClick	(item: IData) => void	❌	-	Callback when marker is clicked
title	string \| ReactNode	❌	'World Map'	Map title
style	CSSProperties	❌	-	Custom styles for map container
className	string	❌	-	CSS class for root container
theme	Theme	❌	-	Fluent UI theme object

Map Configuration

Property	Type	Required	Default	Description
mapKey	string	❌	-	MapTiler API key
mapStyleUrl	string	❌	-	Custom map style URL
fitPadding	number	❌	20	Padding when fitting to markers

Search Configuration

Property	Type	Required	Default	Description
search.enabled	boolean	❌	true	Enable search feature
search.placeholder	string	❌	'Search locations...'	Search input placeholder
search.searchField	keyof IData \| function	❌	'name'	Field to search or custom function
search.zoomLevel	number	❌	8	Zoom level for search results
search.position	object	❌	{top: '10px', left: '10px'}	Search overlay position
search.onSearchChange	function	❌	-	Callback when search changes

Marker Configuration

Property	Type	Required	Default	Description
marker.markerClassName	string	❌	-	CSS class for markers
marker.markerStyle	CSSProperties	❌	-	Custom marker styles
marker.imageSize	number	❌	40	Marker image size (px)
marker.renderToolTip	function	❌	-	Custom tooltip renderer
marker.tooltipClassName	string	❌	-	CSS class for tooltips
marker.tooltipStyle	CSSProperties	❌	-	Custom tooltip styles

Data Structure

Each location item must implement the IData interface:

interface IData {
  id: string;                    // Unique identifier
  name: string;                  // Display name (used for search)
  imageUrl: string;              // Image URL for marker/tooltip
  link: string;                  // Associated URL/link
  coordinates: [number, number]; // [longitude, latitude]
}

Example Data

const sampleData: IData[] = [
  {
    id: 'paris-001',
    name: 'Paris, France',
    imageUrl: 'https://example.com/images/paris.jpg',
    link: 'https://example.com/locations/paris',
    coordinates: [2.3522, 48.8566] // [longitude, latitude]
  },
  {
    id: 'tokyo-001',
    name: 'Tokyo, Japan',
    imageUrl: 'https://example.com/images/tokyo.jpg',
    link: '/locations/tokyo',
    coordinates: [139.6917, 35.6895]
  }
];

Map Configuration

Using Demo Map (Free)

<MaplibreWorldMap data={locations} />

Using MapTiler API Key

<MaplibreWorldMap
  data={locations}
  mapKey="your-maptiler-api-key"
/>

Custom Map Style

<MaplibreWorldMap
  data={locations}
  mapKey="your-api-key"
  mapStyleUrl="https://api.maptiler.com/maps/satellite/style.json"
/>

Map Style Priority

1. mapKey + mapStyleUrl: Uses the style URL with API key
2. mapKey only: Uses MapTiler streets style
3. mapStyleUrl only: Uses URL as-is
4. Neither: Uses free demo map

Search Feature

Basic Search

<MaplibreWorldMap
  data={locations}
  search={{
    enabled: true,
    placeholder: "Find a location..."
  }}
/>

Custom Search Field

<MaplibreWorldMap
  data={locations}
  search={{
    searchField: 'id', // Search by ID instead of name
  }}
/>

Custom Search Function

<MaplibreWorldMap
  data={locations}
  search={{
    searchField: (item) => `${item.name} ${item.link}`, // Search multiple fields
    onSearchChange: (term, results) => {
      console.log(`Found ${results.length} results for "${term}"`);
    }
  }}
/>

Search Positioning

<MaplibreWorldMap
  data={locations}
  search={{
    position: {
      top: '10px',
      right: '10px' // Top-right corner
    }
  }}
/>

Marker Customization

Basic Marker Styling

<MaplibreWorldMap
  data={locations}
  marker={{
    imageSize: 50,
    markerStyle: {
      borderRadius: '50%',
      border: '2px solid #0078d4'
    }
  }}
/>

Custom Tooltips

<MaplibreWorldMap
  data={locations}
  marker={{
    renderToolTip: (item) => (
      <div>
        <h4>{item.name}</h4>
        <img src={item.imageUrl} alt={item.name} style={{width: '100px'}} />
        <p>Click to visit: <a href={item.link}>Learn more</a></p>
      </div>
    ),
    tooltipStyle: {
      backgroundColor: 'white',
      border: '1px solid #ccc',
      borderRadius: '8px',
      padding: '12px',
      maxWidth: '200px'
    }
  }}
/>

Examples

Complete Example with All Features

import React from 'react';
import { MaplibreWorldMap } from '@pnp/spfx-controls-react/lib/WorldMapControl';
import { IData } from '@pnp/spfx-controls-react/lib/worldMap';

const AdvancedMapExample: React.FC = () => {
  const locations: IData[] = [
    {
      id: 'nyc',
      name: 'New York City',
      imageUrl: 'https://example.com/nyc.jpg',
      link: 'https://example.com/nyc',
      coordinates: [-74.006, 40.7128]
    },
    // ... more locations
  ];

  const handleLocationClick = (location: IData) => {
    window.open(location.link, '_blank');
  };

  const handleSearchChange = (term: string, results: IData[]) => {
    console.log(`Search: "${term}" - ${results.length} results`);
  };

  return (
    <MaplibreWorldMap
      data={locations}
      onClick={handleLocationClick}
      mapKey="your-maptiler-api-key"
      title="Global Office Locations"
      style={{
        width: '100%',
        height: '600px',
        border: '1px solid #e1e1e1',
        borderRadius: '8px'
      }}
      fitPadding={50}
      search={{
        enabled: true,
        placeholder: "Search office locations...",
        zoomLevel: 10,
        position: { top: '15px', right: '15px' },
        onSearchChange: handleSearchChange,
        searchField: (item) => `${item.name} ${item.id}`
      }}
      marker={{
        imageSize: 45,
        markerStyle: {
          borderRadius: '50%',
          border: '3px solid #0078d4',
          boxShadow: '0 2px 8px rgba(0,0,0,0.3)'
        },
        renderToolTip: (item) => (
          <div>
            <h4 style={{margin: '0 0 8px 0'}}>{item.name}</h4>
            <img
              src={item.imageUrl}
              alt={item.name}
              style={{width: '120px', borderRadius: '4px'}}
            />
            <p style={{margin: '8px 0 0 0', fontSize: '12px'}}>
              Click marker to visit location page
            </p>
          </div>
        ),
        tooltipStyle: {
          backgroundColor: 'white',
          border: '1px solid #ccc',
          borderRadius: '8px',
          padding: '12px',
          maxWidth: '160px',
          textAlign: 'center'
        }
      }}
    />
  );
};

export default AdvancedMapExample;

Minimal Example

<MaplibreWorldMap
  data={[
    {
      id: '1',
      name: 'Paris',
      imageUrl: 'paris.jpg',
      link: '/paris',
      coordinates: [2.3522, 48.8566]
    }
  ]}
  onClick={(location) => alert(`Clicked: ${location.name}`)}
/>

TypeScript Support

The component is fully typed with TypeScript. Import the interfaces for type safety:

import { IMaplibreWorldMapProps, IData } from '@pnp/spfx-controls-react/lib/worldMap';

const MyComponent: React.FC<{locations: IData[]}> = ({ locations }) => {
  const mapProps: IMaplibreWorldMapProps = {
    data: locations,
    onClick: (item) => console.log(item.name),
    // ... other props with full type checking
  };

  return <MaplibreWorldMap {...mapProps} />;
};

Browser Support

• Modern browsers with ES6+ support
• WebGL support required for map rendering
• Mobile browsers supported

Performance Tips

1. Limit data size: For large datasets (>100 markers), consider clustering or pagination
2. Optimize images: Use appropriate image sizes for markers
3. API key: Use your own MapTiler API key for production to avoid rate limits
4. Lazy loading: Load the component only when needed to reduce initial bundle size

Troubleshooting

Common Issues

1. Map not loading: Check if mapKey is valid or use demo map
2. Markers not appearing: Verify coordinates format is [longitude, latitude]
3. Search not working: Ensure searchField matches available data properties
4. Performance issues: Reduce number of markers or optimize marker images

Getting Help

• Check the browser console for error messages
• Verify all required properties are provided
• Ensure coordinate format is correct (longitude first, then latitude)
• Test with demo data to isolate issues
