PropertyFieldBrandFontPicker control

This control generates a font picker that reads from SharePoint Brand Center and allows users to select corporate-approved fonts for their web parts. It supports both Brand Center fonts, system fonts, and custom font tokens with preview capabilities.

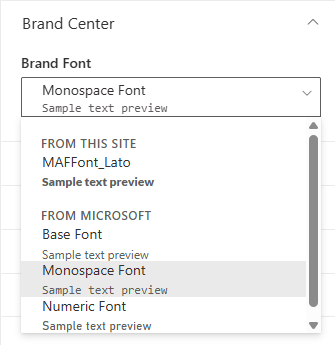

PropertyFieldBrandFontPicker

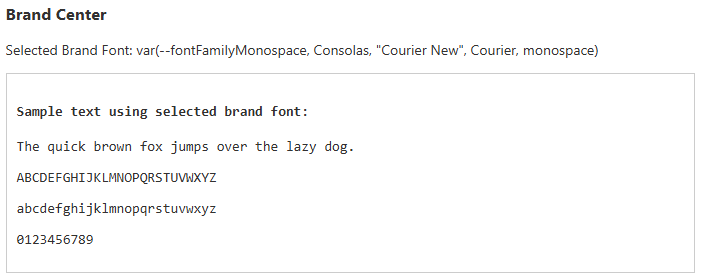

PropertyFieldBrandFontPicker with font preview

How to use this control in your solutions

1. Check that you installed the @pnp/spfx-property-controls dependency. Check out The getting started page for more information about installing the dependency.
2. Import the following modules to your component:

import { PropertyFieldBrandFontPicker } from '@pnp/spfx-property-controls/lib/PropertyFieldBrandFontPicker';

1. Create a new property for your web part, for example:

export interface IPropertyControlsTestWebPartProps {
  brandFont: string;
}

1. Add the custom property control to the groupFields of the web part property pane configuration:

PropertyFieldBrandFontPicker('brandFont', {
  label: 'Brand Font',
  initialValue: this.properties.brandFont,
  onSelectionChanged: (fontToken) => {
    this.properties.brandFont = fontToken.value;
    this.onPropertyPaneFieldChanged('brandFont', fontToken.value);
  },
  context: this.context,
  showPreview: true,
  key: 'brandFontFieldId'
})

Using Custom Font Tokens

You can provide your own list of font tokens instead of relying on Brand Center:

import { IBrandFontToken } from '@pnp/spfx-property-controls/lib/PropertyFieldBrandFontPicker';

const customFontTokens: IBrandFontToken[] = [
  {
    name: 'corporateHeading',
    displayName: 'Corporate Heading Font',
    value: '"Montserrat", sans-serif',
    category: 'custom'
  },
  {
    name: 'corporateBody',
    displayName: 'Corporate Body Font',
    value: '"Open Sans", sans-serif',
    category: 'custom'
  }
];

PropertyFieldBrandFontPicker('brandFont', {
  label: 'Custom Brand Font',
  initialValue: this.properties.brandFont,
  onSelectionChanged: (fontToken) => {
    this.properties.brandFont = fontToken.value;
    this.onPropertyPaneFieldChanged('brandFont', fontToken.value);
  },
  context: this.context,
  customFontTokens: customFontTokens,
  showPreview: true,
  key: 'brandFontFieldId'
})

Implementation

The PropertyFieldBrandFontPicker control can be configured with the following properties:

Property	Type	Required	Description
label	string	no	Property field label displayed on top.
initialValue	string	no	Initial font value to be selected.
onSelectionChanged	function	yes	Callback function when a font is selected. Returns the selected IBrandFontToken.
context	BaseComponentContext	yes	The SPFx component context.
customFontTokens	IBrandFontToken[]	no	Array of custom font tokens to display instead of Brand Center fonts.
showPreview	boolean	no	Whether to display font preview text in the dropdown. Default is true.
disabled	boolean	no	Whether the control is disabled. Default is false.
onFontTokensLoaded	function	no	Callback function called when font tokens are loaded.
loadingErrorMessage	string	no	Custom error message to display when font loading fails.
key	string	yes	An UNIQUE key indicates the identity of this control.

Interface IBrandFontToken:

Property	Type	Required	Description
name	string	yes	Unique identifier for the font token.
displayName	string	yes	Display name shown in the dropdown.
value	string	yes	CSS font-family value (e.g., '"Lato", sans-serif').
preview	string	no	Optional preview text.
category	string	no	Category for grouping (e.g., 'site', 'microsoft', 'custom').
fileUrl	string	no	Optional URL to font file or CSS.

Example

import * as React from 'react';
import * as ReactDom from 'react-dom';
import { Version } from '@microsoft/sp-core-library';
import {
  BaseClientSideWebPart,
  IPropertyPaneConfiguration,
  PropertyPaneTextField
} from '@microsoft/sp-webpart-base';

import { PropertyFieldBrandFontPicker } from '@pnp/spfx-property-controls/lib/PropertyFieldBrandFontPicker';

export interface IPropertyControlsTestWebPartProps {
  brandFont: string;
}

export default class PropertyControlsTestWebPart extends BaseClientSideWebPart<IPropertyControlsTestWebPartProps> {

  public render(): void {
    const element: React.ReactElement<IPropertyControlsTestWebPartProps> = React.createElement(
      PropertyControlsTest,
      {
        brandFont: this.properties.brandFont
      }
    );

    ReactDom.render(element, this.domElement);
  }

  protected get propertyPaneConfiguration(): IPropertyPaneConfiguration {
    return {
      pages: [
        {
          header: {
            description: strings.PropertyPaneDescription
          },
          groups: [
            {
              groupName: strings.BasicGroupName,
              groupFields: [
                PropertyFieldBrandFontPicker('brandFont', {
                  label: 'Brand Font',
                  initialValue: this.properties.brandFont,
                  onSelectionChanged: (fontToken) => {
                    this.properties.brandFont = fontToken.value;
                    this.onPropertyPaneFieldChanged('brandFont', fontToken.value);
                  },
                  context: this.context,
                  showPreview: true,
                  key: 'brandFontFieldId'
                })
              ]
            }
          ]
        }
      ]
    };
  }
}
