Site Snapshot - SharePoint Site Health Copilot App

Summary

Site Snapshot is an SPFx Copilot UX Component, packaged with a declarative agent, that gives an on-demand health snapshot of a SharePoint site inside Microsoft 365 Copilot. Ask "how healthy is the Marketing site?" and the agent scans every user document library on the site and returns a 0-100 health score built from five explained sub-scores, plus the detail behind it: stale documents, external and "Anyone" sharing, duplicates and the space they waste, large and empty files, and a breakdown by file type and owner.

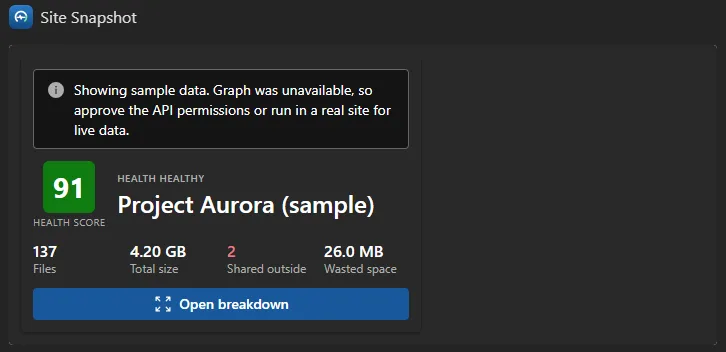

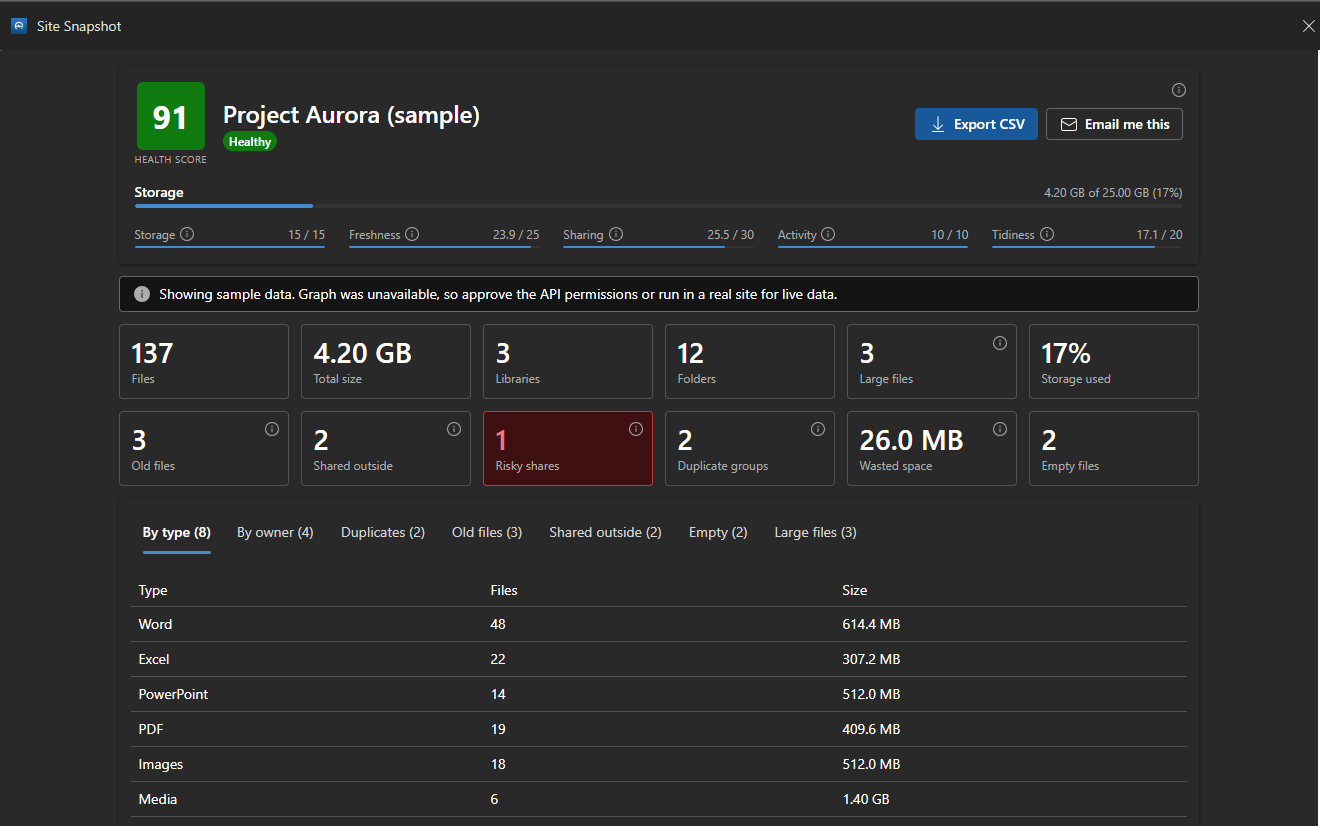

Inline, the component renders a compact score card in the chat. Select Open breakdown to expand it to a fullscreen dashboard, where you can export the results to CSV or email yourself a summary. The component is read-only: it never changes the site.

Compatibility

Applies to

• SharePoint Framework
• Microsoft Copilot extensibility
• Microsoft 365 tenant

Get your own free development tenant by subscribing to the Microsoft 365 developer program

Contributors

• Tanel Vahk

Version history

Version	Date	Comments
1.0	October 2, 2026	Initial release

Prerequisites

• A Microsoft 365 tenant with SPFx 1.24 (public preview) Copilot Components available. Use a sandbox or developer tenant while the feature is in preview.
• A tenant app catalog, and rights to approve API access in the SharePoint admin center.
• The solution requests these delegated Microsoft Graph permissions. Approve them in SharePoint admin center > Advanced > API access after you deploy the package:

Permission	Used for
Sites.Read.All	Resolving the site by URL or name
Files.Read.All	Reading libraries, files and sharing permissions
Mail.Send	The Email me this action, sent as the signed-in user (optional)

If you don't need the email action, remove Mail.Send from config/package-solution.json before you package. The snapshot itself only needs the two read scopes.

Until the permissions are approved, or when the component runs outside a tenant context, the service falls back to sample data so the UI still renders. Both the inline card and the dashboard show a notice whenever sample data is displayed.

Minimal path to awesome

• Clone this repository (or download this solution as a .ZIP file then unzip it)
• From your command line, change your current directory to the directory containing this sample (site-snapshot, located under samples)
• In the command line run:
  • npm install
  • npm run start
• SPFx Copilot Components can't be tested in the local workbench, so npm run start serves against the hosted Copilot Workbench in your tenant. config/serve.json uses a {tenantDomain} placeholder: set the SPFX_SERVE_TENANT_DOMAIN environment variable (for example contoso.sharepoint.com) before you start, or open https://<your-tenant>.sharepoint.com/_layouts/15/copilotworkbench.aspx yourself. Accept the debug manifests and activate the Site Snapshot component.

Production build, test, and package:

npm run build

Other build commands can be listed using heft --help.

Deploy to your tenant

• npm run build runs the tests and creates sharepoint/solution/site-snapshot.sppkg.
• Upload the package to the tenant app catalog, select Make this solution available to all sites in the organization, and then select Deploy.
• Approve the API permissions listed in Prerequisites.
• Select the app in the app catalog, and then select Add to Teams. This syncs the declarative agent into Microsoft 365 Copilot.
• If your tenant requires approval for custom apps, the agent appears in Teams admin center > Teams apps > Manage apps as Submitted or Blocked. Select Publish, set it to Allowed, and use Edit availability to choose who can use it.
• In Microsoft 365 Copilot, open Site Snapshot from the agents list and try a prompt such as "Give me a health snapshot of https://contoso.sharepoint.com/sites/Marketing".

When you redeploy, increase both solution.version in config/package-solution.json and version in copilot/manifest.json. If the Teams manifest version doesn't change, the sync keeps the previous version.

Features

The agent exposes one tool, analyzeSite, with these parameters (defined with Zod in SiteSnapshotCopilotComponentProperties.ts):

Parameter	Description
siteUrl	Absolute URL or site name to analyse
staleMonths	A file counts as stale if unchanged for this many months (default 6)
largeMb	A file counts as large at or above this size in MB (default 100)
focus	The dashboard view to open first: overview, types, owners, duplicates, stale, external, empty or largest

The health score starts at 100 and removes up to a fixed number of points for each factor: storage (15), stale content (25), sharing exposure (30), activity (10) and tidiness (20). "Anyone" links count double toward exposure, and an "Anyone" link on a stale file is flagged as critical. The weights and thresholds are named constants in models/health.ts, and the sub-scores are always shown, so the score is never a black box.

The agent also has the OneDriveAndSharePoint capability, so you can chat with it about your sites in general (for example, "Which of our sites haven't been used for a long time?"). It answers those from the content you can access, and runs the visual health check only when you ask for one.

This sample illustrates the following concepts:

• An SPFx Copilot Component with designed inline and fullscreen layouts, expanded with requestDisplayModeAsync('fullscreen')
• Tool parameters set by the agent from the user's question, including opening the dashboard straight to the relevant view
• Calling Microsoft Graph through the brokered MSGraphClientV3, with no token handling in the component
• A bounded, paged, breadth-first scan across all user document libraries, with caps on files, folders and permission checks to stay clear of throttling
• Duplicate detection with the Graph quickXorHash file hash
• Fluent UI v9 with makeStyles, themed from the Copilot host and injected into the host iframe through targetDocument
• A thin component class, with data access behind a service interface, scoring as a pure tested function, and all UI in components/
• Sharing the results with the model through copilotBridge.updateModelContextAsync, so follow-up questions get real figures

Solution structure

src/copilotComponents/siteSnapshot/
  SiteSnapshotCopilotComponent.tsx           thin host class (fetch, render, wire actions)
  SiteSnapshotCopilotComponentProperties.ts  Zod tool parameters
  SiteSnapshotCopilotComponent.manifest.json
  components/   SiteSnapshot (root), ScoreCard (inline), Dashboard (fullscreen), DetailTable, InfoTip
  services/     ISiteSnapshotService, SiteSnapshotService (Graph), sampleData (fallback)
  models/       domain types and health scoring (with Jest tests)
  utils/        formatters, CSV export, file-type categories (with Jest tests)
copilot/        declarativeAgent.json, ai-plugin.json, instruction.txt, manifest.json
config/         config.json, copilot-agent.json, package-solution.json

Limitations

• To keep a large site responsive, a scan stops at 1,000 files and 400 folders, and checks sharing on at most 80 shared items. The dashboard says when a scan was capped.
• Storage used and quota come from the site's default document library.
• Microsoft 365 Copilot has no "current site", so include the site URL or name in your prompt.
• Copilot Components are in public preview (SPFx 1.24). APIs and behavior can change before general availability.
