Zava IT Concierge

Powered by SPFx Copilot Apps

Summary

Zava IT Concierge is an employee IT self-service Copilot App built with SharePoint Framework 1.24 Copilot Components. It turns device support, hardware requests, manager approvals, service health, and fleet operations into interactive work inside the Microsoft 365 Copilot canvas.

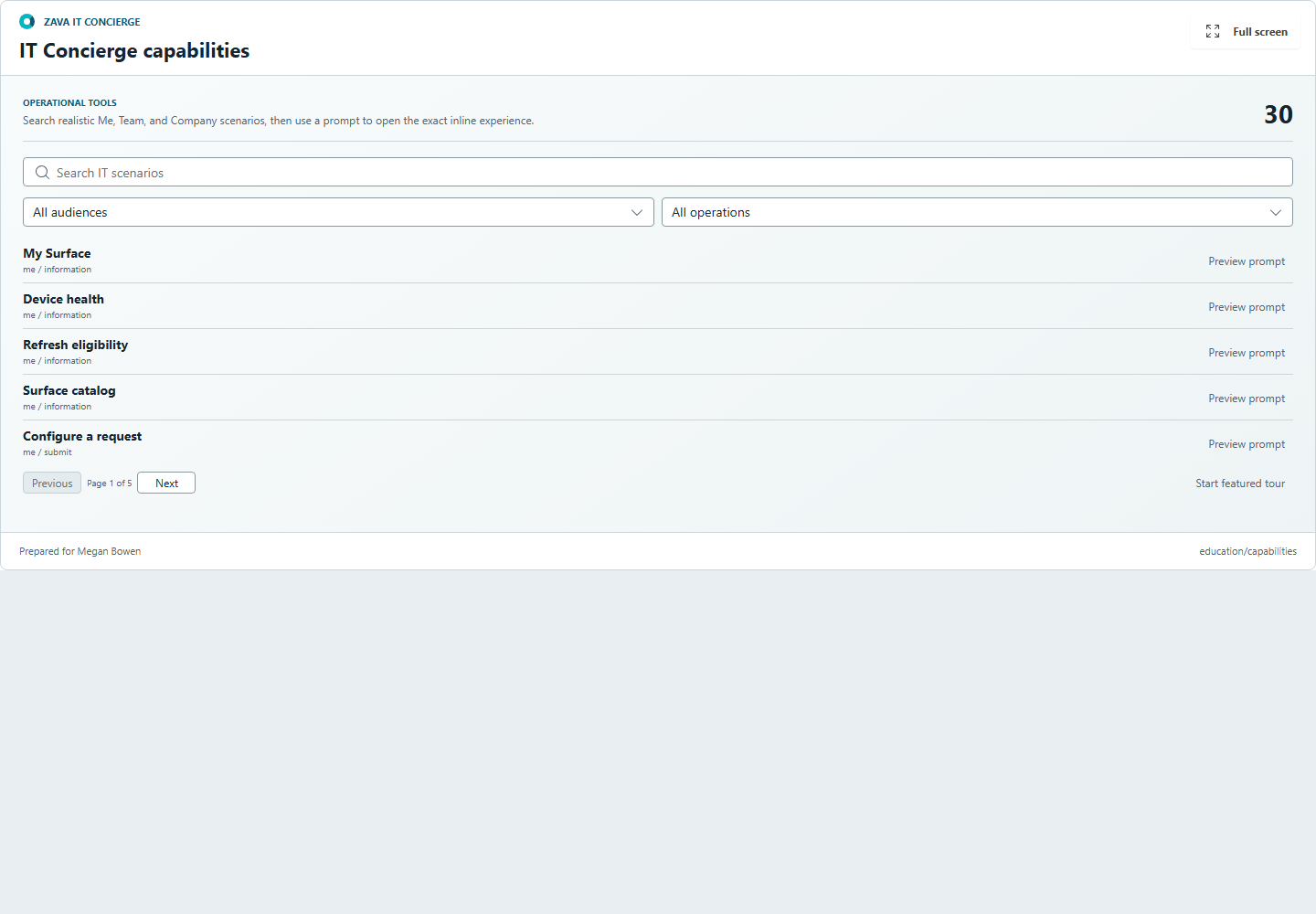

The solution contains 30 independently routed operational tools plus one searchable capability explorer. Every tool can expand into one connected Personal, Team, or IT Portfolio dashboard while preserving the initiating intent and safe prompt-derived context.

[!IMPORTANT] The sample uses deterministic offline data and session-only confirmed actions. Prompt values can filter or prefill a component, but they never submit, approve, decline, delegate, declare, wipe, or apply a refresh plan without visible review and confirmation. Live Microsoft Graph, Intune, service-health, procurement, shipment, and finance integrations are intentionally deferred.

The canonical production gate passes eight suites and 35 tests, validates 39 implementation screenshots, validates the generated 31-function API plugin and mirrored MCP tools, and audits a 2,147,811-byte .sppkg with no stale output, duplicate media, or icon-font payload.

Applies To

• SharePoint Framework 1.24 Copilot Components
• Microsoft 365 Copilot declarative agents and API plugin v2.4
• React 17 and Fluent UI React v9

At a Glance

Metric	Delivered
Prompt-addressable tools	31: 30 operational tools plus capability exploration
Conversation starters	6, each targeting one tool; explorer last
Full-screen dashboards	3: Personal, Team, and IT Portfolio
Shared production entries	1 initial 464,014-byte entry, with purpose-gated lazy dashboard, chart, and geography chunks
Deterministic data	150 employees, 180 devices, 10 catalog SKUs, and 300 tickets
Publication screenshots	39 real implementation captures
Local tests	8 suites and 35 tests
Production package	2,147,811 bytes; one primary entry and 44 lazy chunks
Data mode	Offline mocked graph with session-only receipts

Screenshots

Experience Model

Inline

Each catalog intent owns one SPFx Copilot Component, immutable GUID, generated manifest, positive and negative routing boundary, optional Zod property schema, preview data, and focused React composition. The shared header presents the Zava IT Concierge brand and action title, with a stable Full screen control in the top-right corner.

Prompt-derived values visibly affect filters or editable fields. Generic prompt echo and generic decision-insight rails are absent by default. Submit and review tools expose evidence, consequence, rationale, explicit confirmation, and a semantic session receipt.

Full Screen

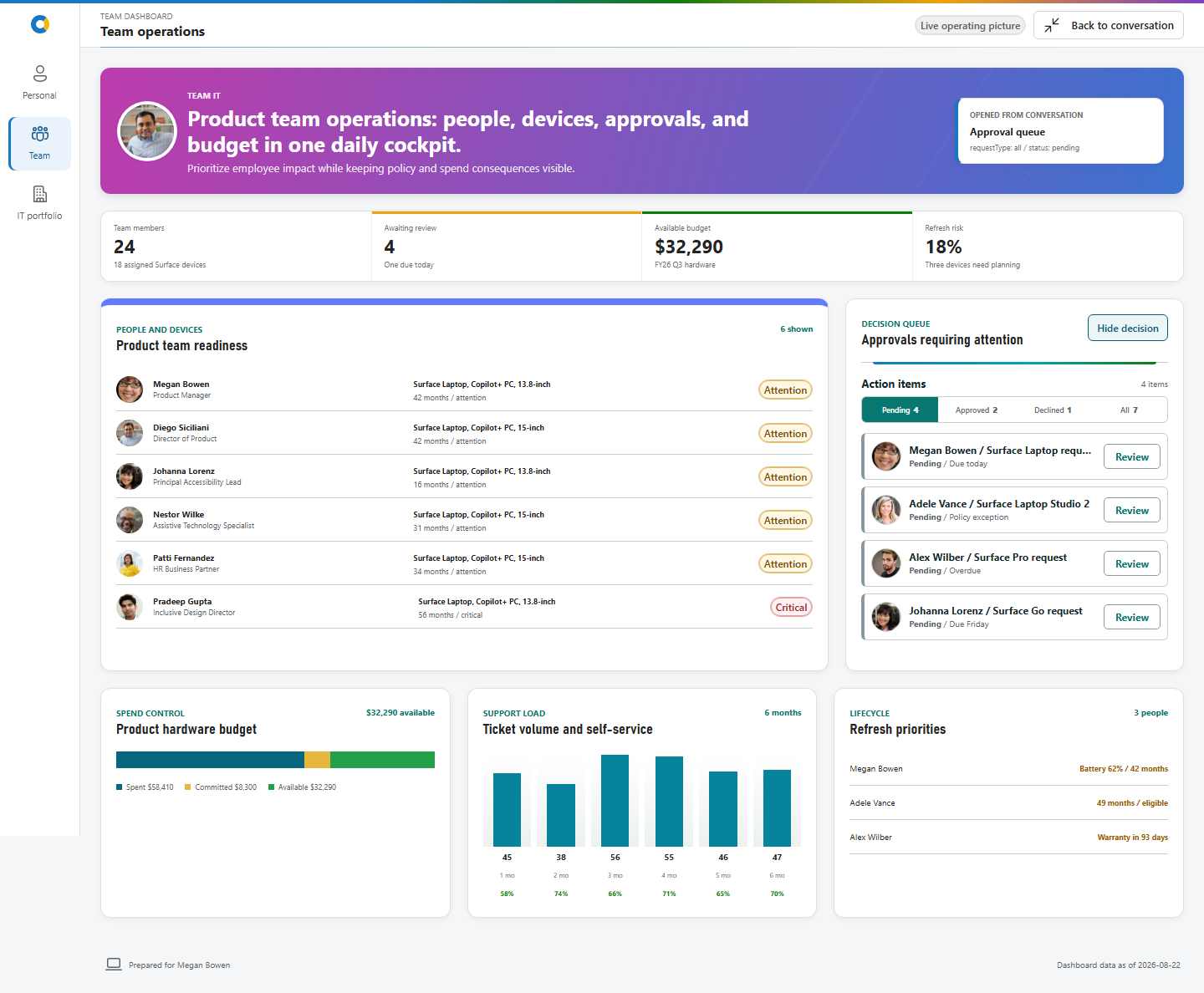

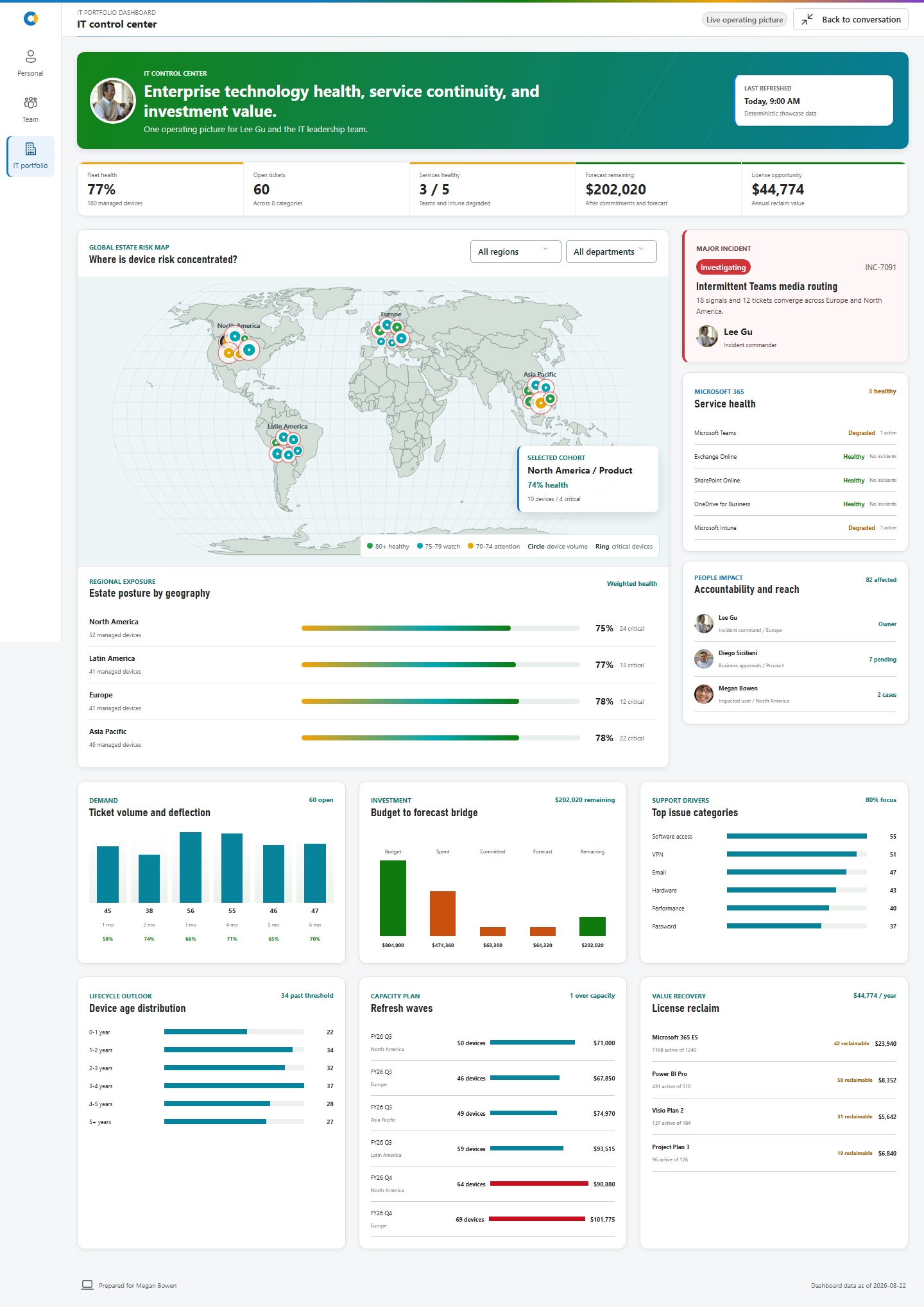

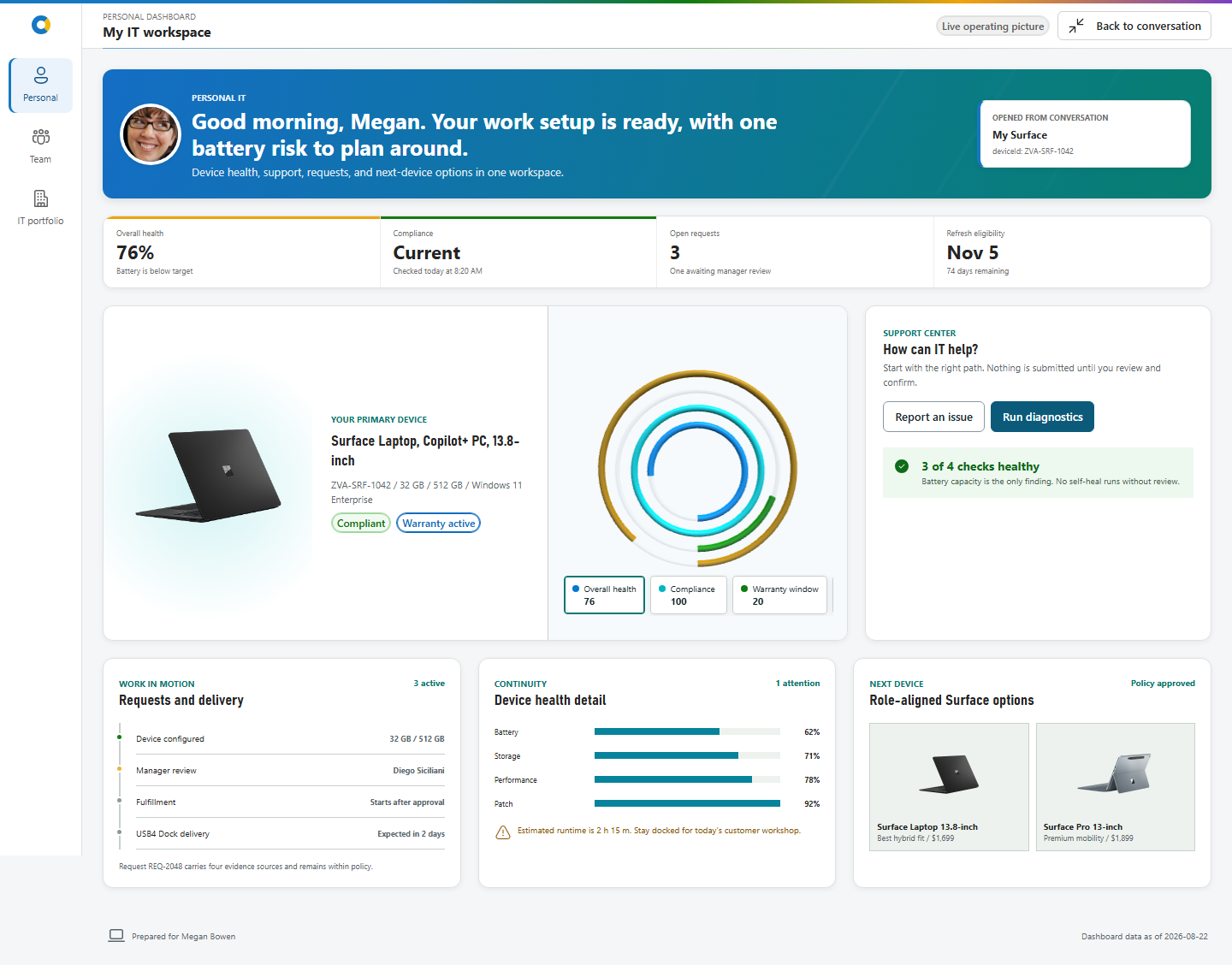

The shared shell has three keyboard-operated business lenses:

Lens	Persona	Purpose
Personal	Megan Bowen	Device continuity, support, requests, and next-device choices
Team	Diego Siciliani	People readiness, approvals, policy, budget, and support load
IT Portfolio	Lee Gu	Estate risk, service continuity, incidents, spend, licenses, and refresh capacity

All 31 origins map to one owning dashboard. The shell preserves the initiating intent and safe properties, provides useful defaults for every lens, and returns to the conversation through the host display-mode contract.

Routing and Conversation Starters

Zava-IT-Concierge-Prompt-Matrix.md contains copy/paste prompts, optional property previews, full-screen routes, and collision boundaries for all 31 tools. It is generated from the canonical catalog and checked during the production build.

Starter	Expected tool
Submit a support ticket	ReportItIssue
Diagnose my Surface	RunDeviceDiagnostics
Review approval queue	GetApprovalQueue
Inspect fleet health	GetFleetHealth
Correlate an incident	CorrelateMajorIncident
Explore capabilities	ExploreAgentCapabilities

Agent instructions require one tool for the primary request. Specific task language wins over broad discovery language, and the explorer never advertises itself.

Architecture

flowchart LR
  Prompt[Copilot prompt] --> Agent[Declarative agent]
  Agent --> Plugin[API plugin v2.4]
  Plugin --> Tool[One of 31 component tools]
  Tool --> Host[Shared React and Fluent host]
  Catalog[Typed intent catalog] --> Plugin
  Catalog --> Tool
  Mock[Deterministic mock graph] --> Host
  Host --> Inline[Purpose-built inline UX]
  Inline --> Dashboard[Personal, Team, or IT Portfolio]
  Dashboard --> Receipt[Session-only confirmed actions]

Key implementation choices:

• src/shared/intents/intentCatalog.ts is the source of truth for tools, routes, schemas, preview values, education metadata, and visual identities.
• scripts/configure-intent-components.mjs regenerates component bindings, manifests, the agent registration, and six starters.
• React DOM and SVG render forms, queues, journeys, product experiences, and compact analytical views.
• Lazy D3 scale/shape modules support compact charts; D3 Geo, TopoJSON, and Natural Earth data render the estate map.
• Babylon is reserved for genuinely dimensional full-screen scenes. Inline components create zero WebGL engines.
• One seeded mock graph keeps employee, manager, and IT operations evidence coherent.

Mock and Safety Disclosure

This repository is a demonstration sample, not a production IT system.

• Business data is generated locally and deterministic.
• Runtime product and persona media is package-hosted; the experience does not fetch media at runtime.
• Confirmed demo actions append session-only receipts and do not call tenant APIs.
• Controls that resemble export, copy, approval, submission, or planning behavior remain mocked or session-local unless their visible state says otherwise.
• Replace service interfaces with authenticated, authorized, audited adapters before production use.

Accessibility and Worldwide Scope

The implementation uses semantic headings, keyboard-operated lens tabs and chart marks, named form fields, visible required states, non-color status labels, exact-value evidence, reduced-motion behavior, responsive layouts, and initials fallbacks for portraits. Currency, numbers, and dates use Intl-based formatting where applicable.

The Playwright publication harness checks all 31 inline defaults plus representative full-screen, mobile, dark, detail, confirmation, and receipt states for broken images, horizontal overflow, deprecated generic chrome, page errors, and console errors. Authenticated Copilot iframe focus, tenant high contrast, and screen-reader output remain tenant-only validation gates.

Test in Tenant Copilot Workbench

Use the authenticated Copilot Workbench in your Microsoft 365 developer tenant as the primary development and debugging experience.

Prerequisites

• Node.js >=22.14.0 <23.0.0
• Access to a Microsoft 365 tenant that supports SPFx 1.24 Copilot Components

npm install
$env:SPFX_SERVE_TENANT_DOMAIN = "contoso.sharepoint.com"
heft start --nobrowser

Replace contoso.sharepoint.com with your tenant domain and keep the terminal running. Then open this URL, replacing <tenant> with the same tenant name:

https://<tenant>.sharepoint.com/_layouts/CopilotWorkbench.aspx?debugManifestsFile=https%3A%2F%2Flocalhost%3A4321%2Ftemp%2Fbuild%2Fmanifests.js&debug=true&noredir=true

Allow debug scripts if prompted, start a fresh Workbench conversation, and use a prompt from Zava-IT-Concierge-Prompt-Matrix.md. Verify the inline component first, then select Full screen to test its Personal, Team, or IT Portfolio continuation. Source changes rebuild automatically; refresh or start a new Workbench turn to test the update. Press Ctrl+C when finished.

If the browser does not trust the localhost development certificate, run heft trust-dev-cert once and restart the development server.

Build and Package

Run the canonical production gate before sharing or deploying the solution:

npm run build

The canonical build validates routing, local assets, gallery metadata, and generated documentation; runs the clean production test suite; packages the solution; validates the generated 31-function API plugin and mirrored MCP tools; and audits the .sppkg for stale output, hashes, bundle/chunk strategy, duplicate media, icon fonts, and size thresholds.

The ready-to-deploy package is sharepoint/solution/zava-it-concierge.sppkg.

Minimal Path to Awesome

1. Deploy sharepoint/solution/zava-it-concierge.sppkg to the tenant app catalog, or build it locally with npm run build.
2. Add the generated Zava IT Concierge agent to Microsoft 365 Copilot.
3. Start a fresh conversation and use a prompt from Zava-IT-Concierge-Prompt-Matrix.md.
4. Verify that the expected single component renders and prompt-derived values are visible and editable.
5. Use Full screen to verify exact Personal, Team, or IT Portfolio continuation.

Tenant package walkthrough

Watch on YouTube

Optional Local Visual Review

The local visual harness is a secondary option for focused layout checks and publication screenshot work. It does not replace validation in the authenticated tenant Copilot Workbench.

Install Chromium once if you need screenshot regeneration:

npx playwright install chromium

Run the React surfaces without a tenant:

npm run start:visual

Open localhost:4173. Query parameters select an intent, theme, and display mode, for example:

?intent=GetFleetHealth&theme=dark&mode=fullscreen

Regenerate and validate publication evidence with:

npm run capture:visual
npm run check:gallery

See assets/README.md, assets/sample.json, assets/visual-evidence.json, assets/release-evidence.json, and assets/asset-provenance.json.

Demo Scripts

• 3-minute keynote demo
• 10-minute business-value demo
• 5-minute technical demo

Production Validation Commands

Command	Purpose
npm run validate:intents	Validate 31 catalog entries, generated components, one bundle, and six starters
npm run validate:assets	Verify runtime and design asset provenance hashes
npm run check:routing-matrix	Verify the prompt/property/collision matrix is current
npm run capture:visual	Capture 39 real implementation screenshots and runtime evidence
npm run check:gallery	Validate PnP metadata, files, dimensions, URLs, alt text, and coverage
npm run check:generated-plugin	Validate API plugin v2.4 functions and mirrored MCP tools
npm run check:package-output	Audit final package contents, hashes, sizes, stale output, and duplication
npm run build	Run the canonical clean production and packaging gate

Version History

Version	Date	Comments
1.0.0	August 25, 2026	Initial publication with 31 tools, three dashboards, deterministic evidence, demos, and package audits

References

• Build your first SharePoint Copilot App
• SharePoint Framework overview
• Microsoft 365 Copilot
