A community-built Power Platform sample

Clock Time Picker Component

A re-usable component that allows you to select specific times in HH and hh formats through a user friendly and efficient UX.

Power Apps

Download sample View source

Nati Turtledove

Last updated: Jul 15, 2025
Category: Canvas apps
Premium license: Not required
Experimental features: No

A closer look

See the sample in action.

From idea to implementation

Make it your own.

Check this sample's prerequisites, permissions, and licensing before importing it. The documentation below comes directly from the sample README.

Summary

A re-usable component that allows you to select times through a user friendly and convenient UI.

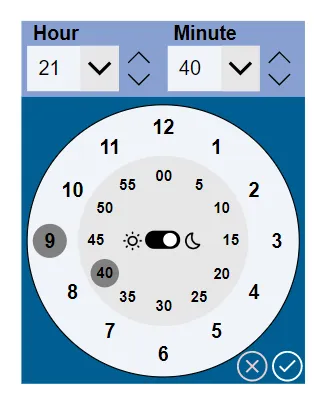

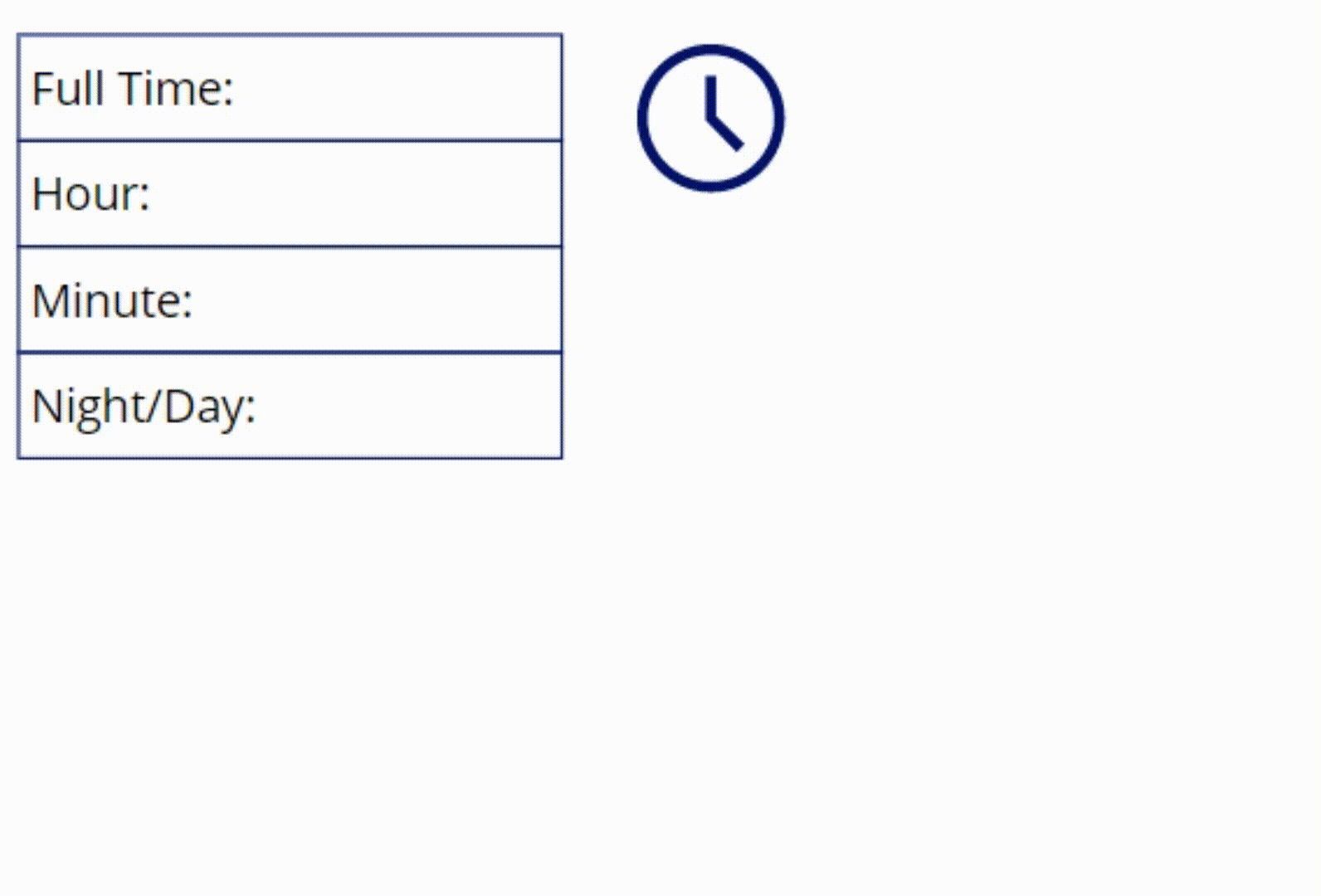

Preview
Preview

Applies to

Compatibility

Contributors

Nati Turtledove (@NatiTurts)

Version history

Version	Date	Comments
1.0	Dec 1, 2022	Initial release
2.0	July 15, 2025	Migration from powerapps-samples repository with solution repacking by Jan Chlebek

Prerequisites

Using the component

To use the component in this sample, you'll need to pass the components Output Properties to a local or global variable within the Canvas App.

The component consists of the following Output Properties that can pass through data: Hour - the selected hour in HH format. Minute - the selected minute FullTime - the full time selected in HH:mm format AMPM - the selected Ante/Post Meridiem

The two Input Properties are: SaveTime Close

The pass the selected time from the clock component to a variable within the app, assign a Set() or UpdateContext({}) function to the component Input Property SaveTime. When the Save button is pressed, the selected time will be passed through and the clock will reset.

When the Close button is pressed, the clock will reset.

Minimal path to awesome

Using the solution zip

Download the .zip from the solution folder
Within Power Apps Studio, import the solution .zip file using Solutions > Import Solution and select the .zip file you just packed.

Using the source code

You can also use the Power Apps CLI to pack the source code by following these steps:

Clone the repository to a local drive
Pack the source files back into a solution .zip file:
```
pac solution pack --zipfile pathtodestinationfile --folder pathtosourcefolder
```
Making sure to replace pathtosourcefolder to point to the path to this sample's sourcecode folder, and pathtodestinationfile to point to the path of this solution's .zip file (located under the solution folder)
Within Power Apps Studio, import the solution .zip file using Solutions > Import Solution and select the .zip file you just packed.

Features

This sample illustrates the following concepts:

The ability for users to interact with a clock to select a preferred time
Allowing for users to select a time by clicking on the clock numbers
Allowing for users to select a time from the dropdowns
Allowing for users to select a time by increasing/deacreasing a selected hour and minute
Allowing for users to select am or pm times
Save the chosen time through an Output Property
Reset the times after saved or cleared

Help

We do not support samples, but this community is always willing to help, and we want to improve these samples. We use GitHub to track issues, which makes it easy for community members to volunteer their time and help resolve issues.

If you encounter any issues while using this sample, you can create a new issue.

For questions regarding this sample, create a new question.

Finally, if you have an idea for improvement, make a suggestion.
